Design Engineer Services in
Clayton MO
Clayton's renovation market moves fast. Homeowners here are decisive, contractors are busy, and the St. Louis County permit office does not slow down for incomplete submittals. When a project stalls at the permit counter, it is almost always because the structural design documentation was not built around what the examiner needed to see. That is the problem Open Concept Engineering was built to solve.
As a design engineering firm Clayton contractors and homeowners have come to rely on, we produce structural design packages that are complete, accurate, and formatted around St. Louis County's specific review requirements. Scott's direct experience inside that plan review process means he knows exactly which details get flagged, which connection specifications get questioned, and what documentation the permit office requires before a building permit is issued.
We provide design engineering services for homeowners, contractors, architects, and builders throughout Clayton and the greater St. Louis metro. Whether your project involves residential structural engineering for home additions, a load bearing wall removal, a floor system that needs reinforcement, a beam replacement, or a retaining wall on a sloped lot — the structural design work starts here.
Structural drawings for permits
in Clayton, MO
Every project that touches structure in Clayton goes through St. Louis County plan review. There is no separate municipal process, no alternative submission path, no shortcut. Your structural drawings go to the county, a licensed plan examiner reviews them, and they either pass or come back with corrections. The speed of that process depends almost entirely on the quality of what gets submitted.
Scott has worked directly inside St. Louis County plan review. He knows what examiners look for, what triggers a rejection, and what documentation needs to be on the sheet before it ever leaves our office. That background is not a talking point, it is built into the structure of every permit drawing we produce.
Our structural drawings for permits on Clayton projects include full member sizing and material specifications, connection details at every bearing point, load path documentation from roof to foundation, and all structural calculations St. Louis County requires before issuing a building permit. The package is engineer-stamped, permit-ready, and built around first-time approval.
Clayton's older housing stock adds a layer of complexity most design engineers underestimate. Stone foundations, original timber framing, and century-old load paths do not always behave the way modern structural assumptions predict. We account for those conditions in every drawing set because a permit package that ignores existing conditions in a 1930s Clayton home is a package that comes back rejected.
If you have been told you need engineer-stamped plans and are not sure what that means for your specific project, call us before you spend money on anything else. We can tell you exactly what is required and how long it will take.
Beam and header design
in Clayton, MO

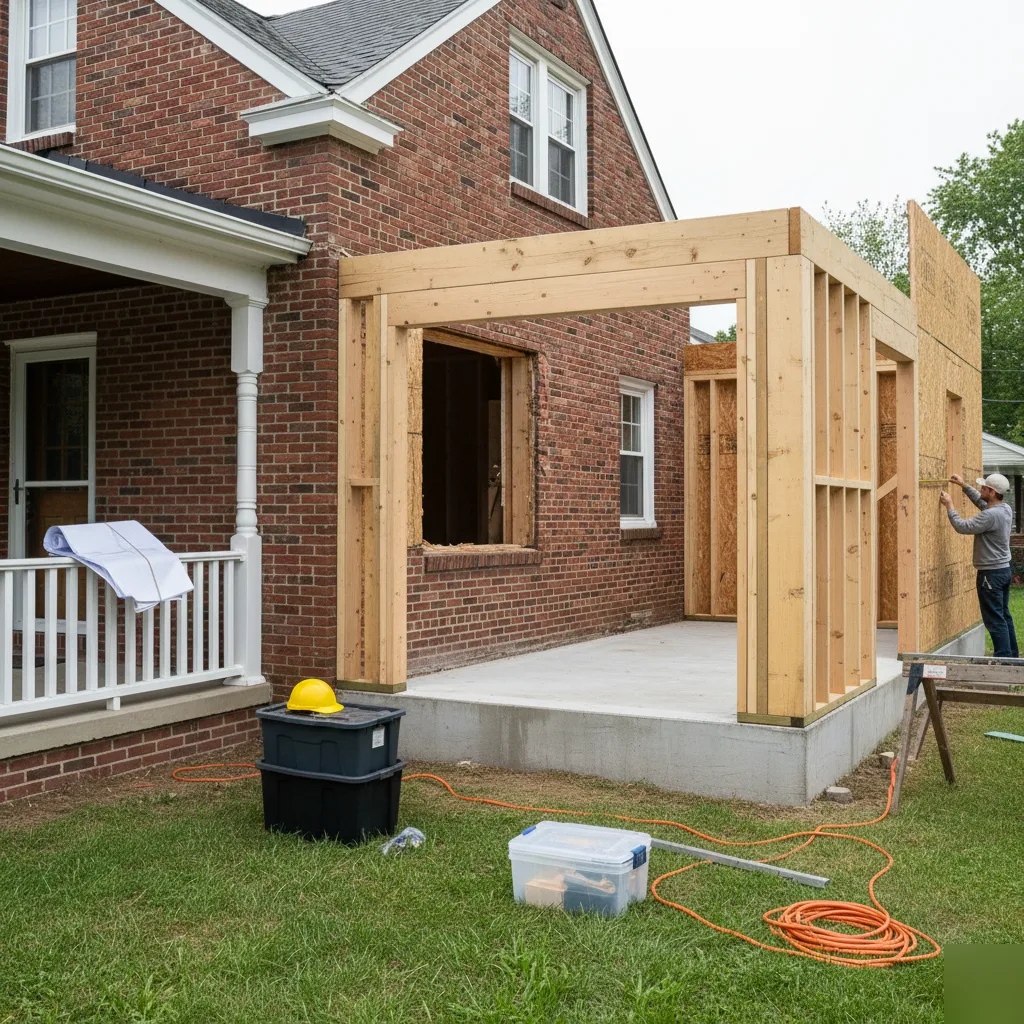

Beam and header design is the structural work behind every open concept remodel and in Clayton, open concept remodels are happening constantly. Kitchens are opening up. Dining rooms are merging with living spaces. First floor layouts built for a different era of living are being redesigned for the way people actually use their homes today.
Every one of those projects requires the same thing: when the load bearing wall comes out, something has to carry the load it was supporting. That something is a beam. Getting that beam right means calculating the full tributary load from everything above roof weight, floor loads, partition walls determining the correct span and depth, specifying the right material, and designing the bearing conditions at each end so load transfers cleanly to the foundation below.
In Clayton's older homes, that calculation carries additional variables. A 1940s brick home near Wydown or on Forsyth may have timber framing, unreinforced masonry bearing walls, or foundation conditions that influence how a modern beam is specified and installed. These are not obstacles they are design parameters that require an engineer who understands how these structures were built and what they can handle.
Our beam and header design service covers the full scope of that work. We evaluate the existing load path, design the replacement beam to code, specify connection hardware and bearing details, and produce permit-ready drawings the contractor can build from without making field decisions that should have been made at the design stage. There is no ambiguity in our drawings, no calls mid-project asking what a specification means, and no surprises at the final inspection.
Contractors working in Clayton bring us in specifically for beam and header design because our drawings pass the first time. That track record is not accidental it is the direct result of Scott's St. Louis County plan review experience applied to every beam specification we produce.
Floor system design
in Clayton, MO
Floor system problems in Clayton homes are among the most misdiagnosed structural issues we encounter. A bounce in the floor gets attributed to old age. A deflection under load gets written off as settling. A creak that has been there for years gets ignored until a renovation opens the floor system up and reveals undersized joists, missing bridging, or bearing conditions that were never adequate to begin with.
Clayton's housing stock predominantly built between the 1920s and 1950s — was designed to original code standards that bear little resemblance to current structural requirements. When a renovation changes the load distribution on one of these floors, adds a soaking tub, removes a partition wall that was providing lateral support, or converts a space from one use to another, the existing floor system has to be evaluated before design work moves forward.

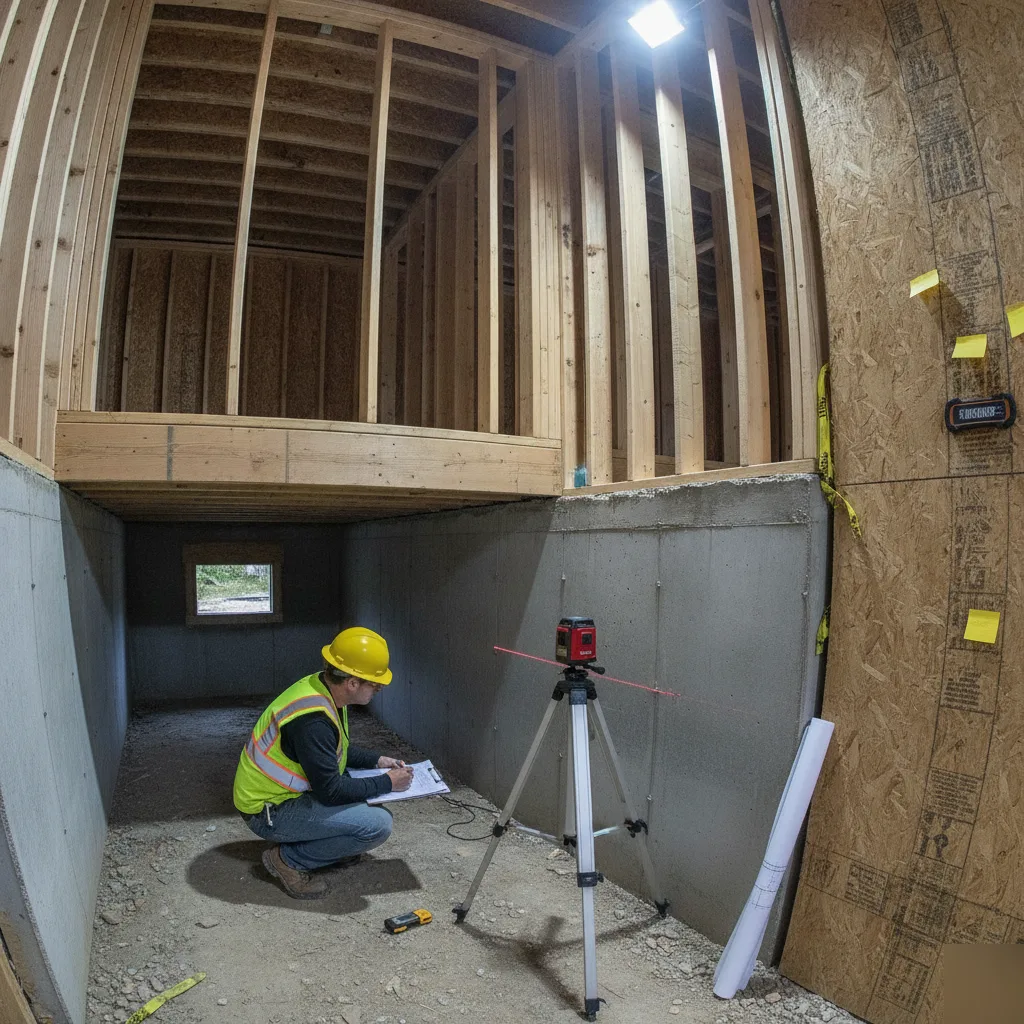

Our floor system design service starts with field verification. We look at the actual framing, the actual span conditions, the actual bearing points — not assumptions pulled from a plan that may or may not reflect what was actually built. Scott uses LiDAR measuring technology and wall scanning tools on every site visit, producing accurate existing condition documentation that becomes the foundation of every floor system design we produce.
From there, we design reinforcement or replacement floor framing to current code, specify connections and bearing hardware, and produce permit-ready drawings that address both the structural deficiency and the renovation scope driving it. For Clayton projects going through St. Louis County plan review, our floor system drawings are formatted around exactly what the examiner needs to see because incomplete floor system documentation is one of the most common reasons structural permits come back with corrections.
If your renovation involves any change to floor loading, layout, or use, get the floor system evaluated before the demo begins. What you find after the subfloor comes up should not be a surprise.
Retaining wall design
in Clayton, MO
Clayton's topography creates retaining wall demand that surprises homeowners who have not dealt with it before. Sloped lots along the streets south of Shaw Park, grade changes in established neighborhoods near the Clayton-Ladue border, and landscape renovations that alter drainage patterns all create conditions where a properly engineered retaining wall is not optional it is a structural requirement.
Retaining walls fail for predictable reasons. They are undersized for the soil load they are holding. Drainage behind the wall is inadequate, creating hydrostatic pressure that the wall was never designed to resist. Footings are too shallow for the frost depth. Connection between the wall and any structure it abuts is insufficient. Every one of those failure modes is preventable with proper engineering at the design stage.
Our retaining wall design service covers residential and light commercial retaining structures throughout Clayton and surrounding St. Louis County communities. We evaluate site conditions, soil bearing, drainage patterns, and any adjacent structures that influence the design. From there, we produce a fully engineered retaining wall design including footing dimensions, wall thickness and reinforcement, drainage specification, and connection details — all formatted for St. Louis County permit submission.
Scott's direct experience in St. Louis County plan review means retaining wall permit packages we produce are built around what the county examiner needs to see before issuing a grading or building permit. That familiarity with the local review standard keeps your project moving without revision cycles that push a landscape or hardscape project weeks past its scheduled start date.
If you have a retaining wall project in Clayton that needs engineering, or an existing wall that is showing signs of movement, call us before the situation gets more expensive than it needs to be.
Why Clayton homeowners & contractors
choose Open Concept Engineering.
Clayton is not a generic market and it does not respond to generic engineering. The housing stock is older, the permitting process runs through St. Louis County, local plan reviewers have specific expectations, and the homeowners driving renovation activity here expect precision and professionalism at every stage of a project.
Scott's background covers both sides of that equation. His years of direct experience in St. Louis County plan review give him specific knowledge of how the local permit process works not in theory, but in practice, with the actual examiners reviewing the actual drawings our clients submit. That knowledge produces permit packages that move through review fast, first-time approval rates that contractors have come to depend on, and structural designs that hold up in the field exactly as they were intended.
We work with homeowners who are planning renovations, contractors who need a reliable engineering partner, architects who need structural coordination, and buyers who need a structural opinion before closing. In every case, the deliverable is the same clear, complete, engineer-stamped structural design documentation that moves your project forward without surprises.
Ready to get your project moving?
Whether you need permit drawings, beam design, floor system engineering, or a retaining wall designed for your Clayton property we can get you an answer fast and a document set that passes.
217.273.6959Most design engineering projects are completed within days. Call us before your project sits waiting on structural documents it should have had from the start.
